Medical Clam Shell Food Butter Jam Blister Blister Packing Machine Factory Direct Sale Medical Blister Packing Machine

1 Set
MOQ
$8,700.00(>=1 Sets)
Prix
Medical Clam Shell Food Butter Jam Blister Blister Packing Machine Factory Direct Sale Medical Blister Packing Machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Type: Blister Packaging Machine
Applicable Industries: Food & Beverage Factory, medicine
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC, Gearbox, Gear
Condition: New
Application: Medical
Automatic Grade: Automatic
Driven Type: Hydraulic
Voltage: 380v/220
Dimension(L*W*H): 1400*460*950mm
Weight: 450 KG
Warranty: 1 Year
Key Selling Points: High-accuracy
Product Name: dpp80 blister packing machine
Keyword: Automatic Capsule Blister Packing Machine
Packing Material: PVC.PP.PET
Capacity: 1200 Plate/h al-al 2400plate/h al-plastic
Function: High Effieciency
Machine Type: High Frequency PVC Blister Packing Machine
Item: Blister Packing Machine Change Part
Usage: Card+blister+card Sealing
PVC Sheet: Thickness(0.25-0.5)*with 120mm
Max formed area: 110*80mm
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Certification: iso ce
Informations de base
Certification: iso ce
Conditions de paiement et expédition
Packaging Details: Export standard wooden packaging
Supply Ability: 100 Set/Sets per Month
Description de produit
Mini Oil Paste Sauce Butter Cheese Ketchup Honey Liquid Chocolate Aluminum Foil Jam Blister Packing Machine Small
Product Application

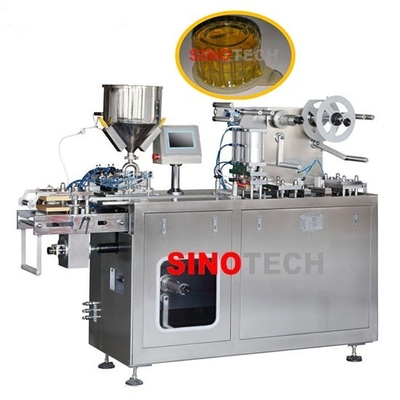

The DPP80 Blister packing machine is of flat-plate structure, with pressing, molding, meshes heat-sealing, adjustable travel range, for small size of body and ease of operation. It is applied to Al-Al, Al-PVC, Al-plastic packaging for capsule, table, candy, healthcare, small hardware etc. It is widely used in small pharmacy factory, preparation-room of hospital institute laboratory, mini-motor test workshop. The machine reaches advanced level in China.
It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), paste as well as irregular shape Al-al Al-plastic and paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc

Technical parameters
Model
DPP80 Blister packing machine
Cutting Frequency
Al-Al: 6-20 times/min Al-plastic: 20-40 times/min
Maximum Production Capacity (Blister/h)
Al-Al: 1200 (standard plate) Al-plastic: 2400 (standard plate )
Maximum Forming Area and Depth (mm)
Al-Al: 90×70×14 Al-plastic: 110×80×26 (Standard 70×90×14)
Travel Range (mm)
20-100 (Can be manufactured as user's requirements)
Air Pressure (Mpa)
0.4-0.6
Standard Plate (mm)
80×57 (Can be manufactured as user's requirements)
Total Power
380V/220V 50Hz 1.8kw
Main Motor Power (kw)
0.55
PVC Rigid Sheet (mm)
0.15-0.5×90
PTP Aluminum Foil (mm)
0.02-0.035×90
Dialysis Paper (mm)
50-100g×90
Mould Cooling
Tap Water or Circulating Water
Overall Dimensions (mm)
1400×460×950(L×W×H)
Weight (kg)
450
Detail picture
Forming Filling
Pump Sealing
Main features


1: It can automatically finish forming, filling, packing, sealing , printing and blister cutting in one machine.

2: With cursor positioning system that can keep Printing at center of whole blister as standard

3: Filling Amount is adjustable at 5-25g (adjustable by users )

4: The bottom film which can use in this machine is thermoformable, heat sealable semi-rigid film and rigid film such PP, PE, PET,PVC and so on.

5: By Changing mould , one machine can pack different kind and size blister

Contact us

Contact person :Susan Guo

Mobile phone: 0086 139 4197 7284

Whatsapp: 0086 139 4197 7284

Wechat: 139 4197 7284

Skype: belinda6454
